Model Number : HH-CMSS
Certification : ISO9001-2015
Place of Origin : CHINA
MOQ : 10 square meters
Price : USD8-26/m2
Payment Terms : T/T,Western Union,MoneyGram
Supply Ability : 30000 square meters per 10 days
Delivery Time : within 2 weeks
Packaging Details : Pallet in common
Name : Frame Rope mesh
Material : SS rope mesh & metal frame
Woven method : Ferrule rope mesh
rope diameter : 3.0mm
Safety net load bearing capacity : ⩾ 122 kg/m2
Mesh Size : 2''X 2'' in common
Customized : frame system design
Application : Safety Barry

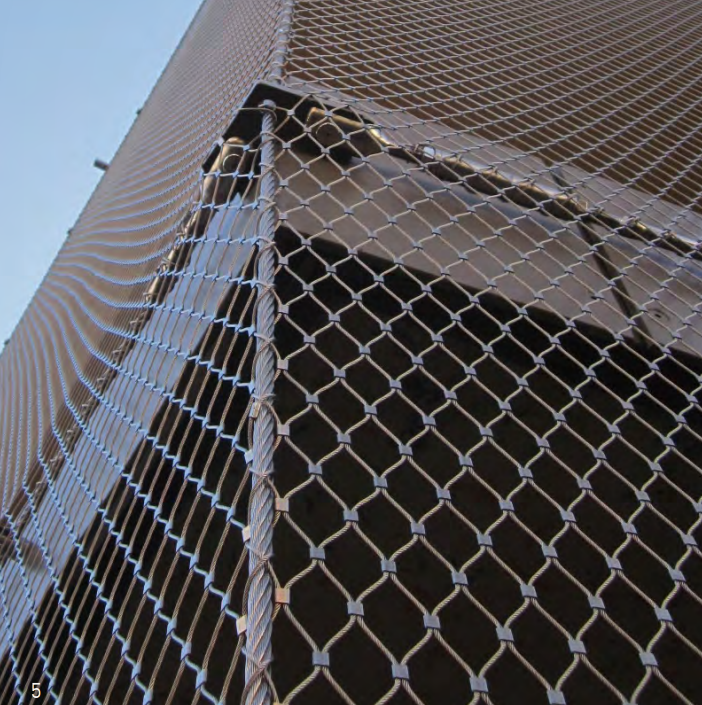

The frame rope mesh is a type of structural or decorative mesh system consisting of ropes or cables tensioned within a rigid frame. It is commonly used in architectural, industrial, and recreational applications for safety barriers, partitions, climbing structures, or aesthetic designs.
Rope mesh | Wire Rope dia | Rupture Stress(W×H) | Rupture Stress | ||
Item no | inch | mm | inch | mm | lbs. |
XY-32120 | 1/8 | 3.2 | 4.75 x 8.23 | 120 x 207.8 | 1,600 |
XY-32102 | 1/8 | 3.2 | 4 x 6.9 | 102 x 176.7 | 1,600 |
XY-3290 | 1/8 | 3.2 | 3.55 x 6.15 | 90 x 156 | 1,600 |
XY-3276 | 1/8 | 3.2 | 3 x5.2 | 76 x 131.6 | 1,600 |
XY-3251 | 1/8 | 3.2 | 2 x3.46 | 51 x88.3 | 1,600 |
XY-24102 | 3/32 | 2.4 | 4x6.9 | 102x176.7 | 920 |
XY-2490 | 3/32 | 2.4 | 3.55x6.15 | 90x 156 | 920 |
XY-2476 | 3/32 | 2.4 | 3 x 5.2 | 76x 131.6 | 920 |
XY-2460 | 3/32 | 2.4 | 2.4x 4.16 | 60x 104 | 920 |
XY-2451 | 3/32 | 2.4 | 2x3.46 | 51 x 88.3 | 920 |
XY-2076 | 5/64 | 2.0 | 3 x 5.2 | 76 x 131.6 | 676 |
XY-2060 | 5/64 | 2.0 | 2.4x 4.16 | 60 x 104 | 676 |
XY-2051 | 5/64 | 2.0 | 2 x 3.46 | 51 x 88.3 | 676 |
XY-2038 | 5/64 | 2.0 | 1-1/2 x 2.6 | 38 x 65.8 | 676 |
XY-1676 | 1/16 | 1.6 | 1.2 x2.08 | 76 x 131.6 | 480 |
XY-1651 | 1/16 | 1.6 | 2x 3.46 | 51 x 88.3 | 480 |
XY-1638 | 1/16 | 1.6 | 1-1/2 x 2.6 | 38 x 65.8 | 480 |
XY-1630 | 1/16 | 1.6 | 1.2x2.08 | 30 x 52 | 480 |
Note | The rope mesh could be could be made as request , and the frame size must be properly tensioned | ||||
![]() |
✔ Durability – Resistant to weather and wear.
✔ Flexibility – Can be designed in various patterns (square, diamond, etc.).
✔ Visibility & Airflow – Provides safety without obstructing views or ventilation.
✔ Aesthetic Appeal – Modern, minimalist look for architectural projects.
Packing of the Frame Rope Mesh
Tips of the Frame Rope Mesh

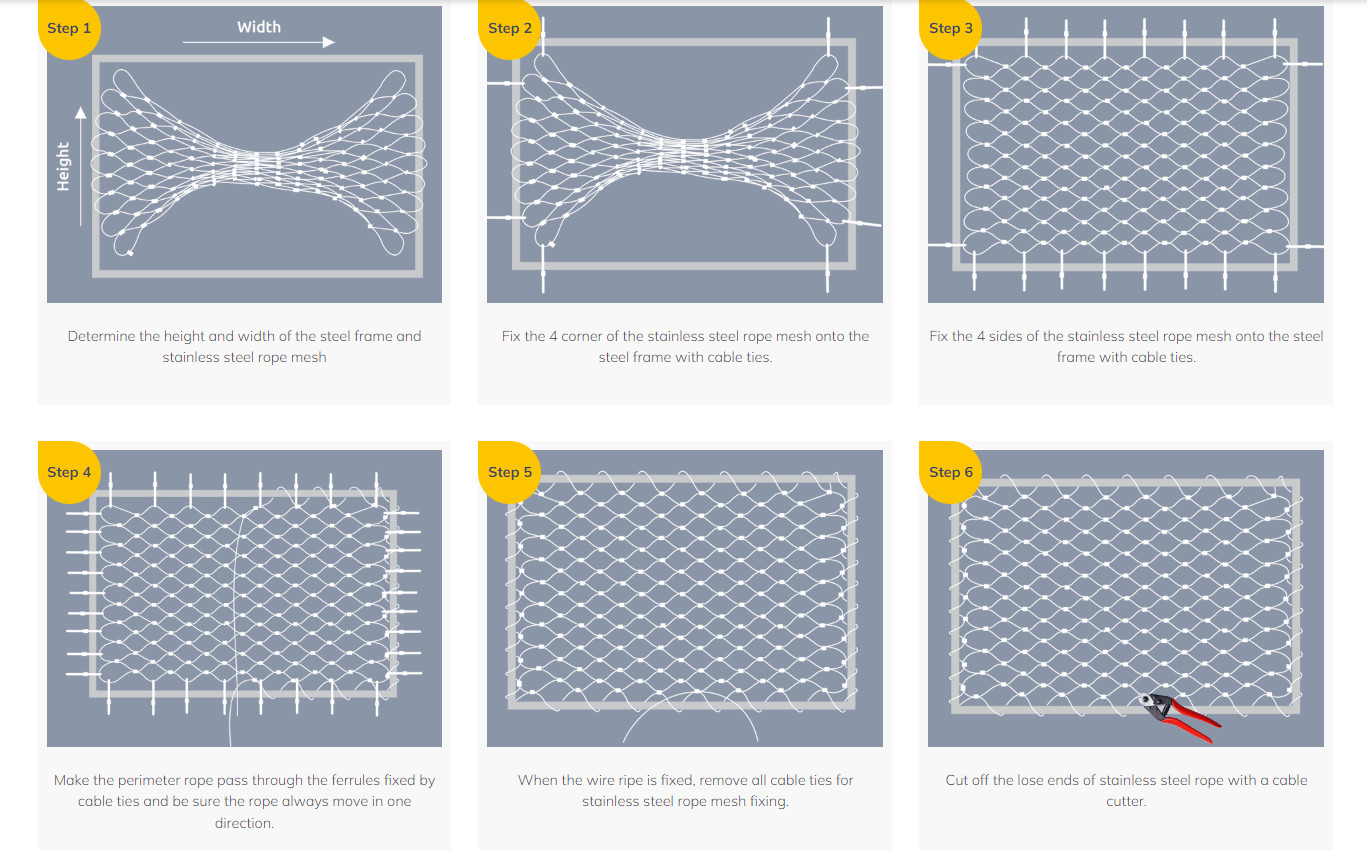

The frame rope mesh would take too much sapce , to save the freight , the client could cusotmized the frame in their local market , and then install the rope mesh on the frame by the following guide .
![]() |

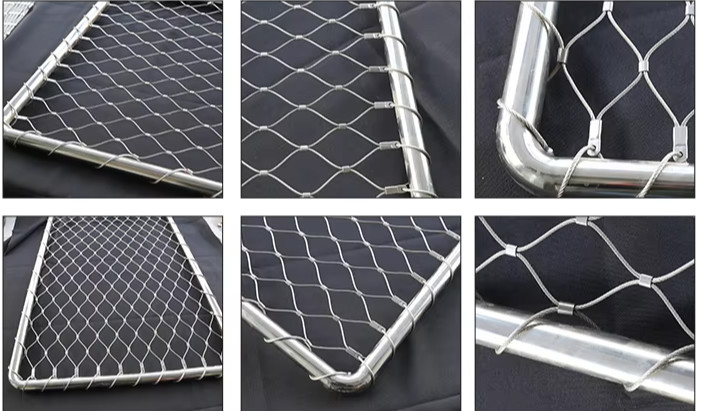

Ferrule 2'' X 2'' Frame Wire Rope Mesh Stainless Steel For Safety Barries Images |
